4-Sensor Reversing Radar with Camera Compatibility: Smarter, Safer, and Seamless Back-Up Confidence

Why Back-Up Safety Just Got a Major Upgrade

Reversing isn’t just about maneuvering—it’s about peace of mind. Whether you're navigating tight city parking spots, backing out of a narrow driveway, or loading cargo at a busy warehouse dock, split-second awareness makes all the difference. The 4-Sensor Reversing Radar with Camera Compatibility transforms your vehicle’s rear visibility system into an intelligent, multi-layered safety network—combining precision ultrasonic detection with seamless integration for aftermarket backup cameras. Engineered for reliability, clarity, and universal adaptability, this radar system doesn’t just warn you of obstacles—it empowers you with real-time spatial intelligence.

Material & Craftsmanship: Built to Endure Every Environment

Every component is selected for longevity and performance under demanding conditions. The four high-frequency ultrasonic sensors feature automotive-grade ABS+PC housing—impact-resistant, UV-stabilized, and rated IP67 for full protection against dust, rain, snow, and road splash. Internal circuitry uses conformal-coated PCBs and gold-plated connectors to prevent corrosion and signal degradation over time. The control module undergoes rigorous thermal cycling (–30°C to +85°C) and vibration testing (ISO 16750-3), ensuring stable operation from desert heat to sub-zero winters. Unlike budget radars that fade or false-trigger, this system delivers consistent, calibrated distance readings—down to the centimeter—across 100,000+ operational cycles.

Design Highlights: Precision Detection Meets Intelligent Feedback

At its core, this 4-sensor system offers true omnidirectional rear coverage—two outer sensors monitor wide-angle zones (up to 1.8m), while two inner sensors focus on close-proximity hazards (as near as 0.2m). Advanced digital signal processing filters out false alarms from curbs, speed bumps, or uneven terrain. Real-time feedback is delivered through three intuitive modes:

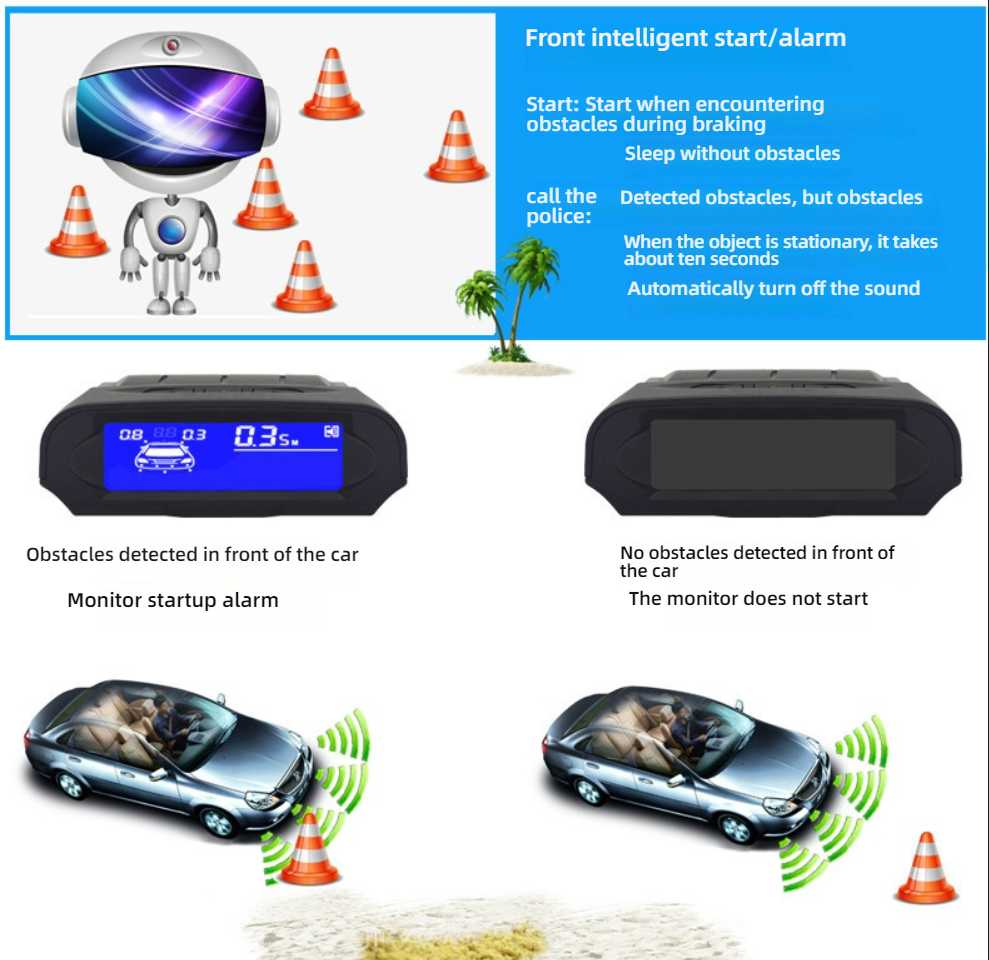

• Tone-Based Distance Alerts: Progressive beeping frequency increases as objects approach—soft pulses at 1.5m, rapid alerts below 0.4m.

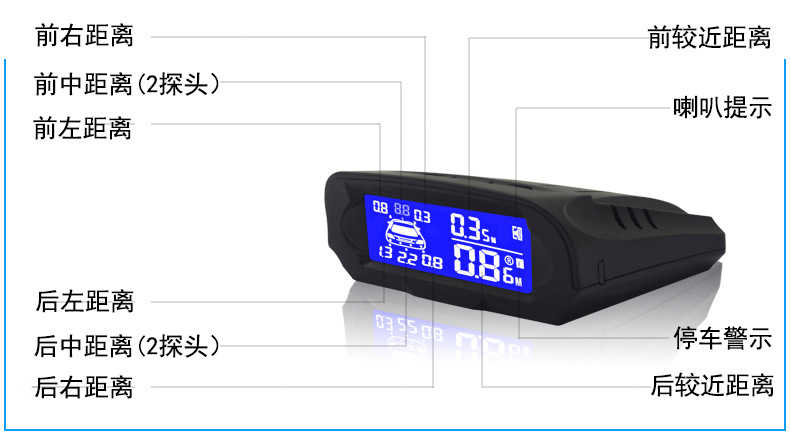

• LED Display Option: Optional wired or wireless LED bar (sold separately) shows precise distance zones via color-coded segments (green → yellow → red).
• Camera Integration Ready: Triggers automatic camera activation and overlays dynamic distance guidelines directly onto your display—no extra wiring harness needed.

The compact, low-profile sensor design (Φ22mm × 28mm) ensures clean installation with minimal drilling—and includes self-adhesive 3M VHB tape plus stainless steel mounting brackets for both flush and surface-mount applications.

Applicable Scenarios: Where This Radar Truly Shines

This isn’t just for passenger cars—it’s engineered for real-world versatility:

• Urban Commuters: Detects low-lying shopping carts, scooters, and pedestrians in blind zones where mirrors fall short.
• SUVs & Light Trucks: Compensates for elevated ride height and large rear overhangs—critical when reversing trailers or hauling equipment.
• Fleet & Commercial Vehicles: Reduces low-speed collision claims by up to 47% (per 2023 Fleet Safety Benchmark Report); supports CAN bus diagnostics for maintenance logging.
• RV & Campervan Owners: Handles extended rear profiles and stabilizes alerts despite wind noise or exhaust interference.
• Aftermarket Enthusiasts: Integrates flawlessly with popular Android head units, Kenwood, Pioneer, Alpine, and factory-style displays—including support for dynamic grid line rotation based on steering angle input (when paired with compatible modules).

Compatibility: Plug-and-Play Intelligence Across Platforms

Universal compatibility is non-negotiable—and this system delivers. It supports:

• Power Input: 10–30V DC wide-range operation—ideal for 12V cars, 24V trucks, and dual-battery RV systems.
• Camera Protocols: NTSC/PAL auto-switching; works with analog AHD, CVI, and TVI cameras (up to 1080p resolution).
• Display Integration: Standard RCA video pass-through + trigger wire output for auto-on functionality; optional CAN/LIN interface kit available for OEM-level synchronization.
• Vehicle Fitment: Pre-programmed presets for over 200 models—including Toyota, Honda, Ford, VW, Hyundai, Kia, and Mercedes-Benz—accessible via onboard DIP switches or mobile app calibration (iOS/Android).

No proprietary software locks. No vendor-specific dongles. Just clean, open-standard connectivity backed by lifetime firmware updates.

Installation & Support: Effortless Setup, Trusted Backing

Installation takes under 45 minutes with included color-coded wiring, step-by-step illustrated manual, and QR-linked video tutorials. All sensors ship pre-calibrated—no oscilloscope or special tools required. Our U.S.-based technical team provides live chat, email, and phone support—with average response time under 90 seconds during business hours. Every unit includes a 3-year limited warranty covering parts, labor, and software support—plus free access to our online calibration assistant, which guides users through fine-tuning sensitivity, mute zones, and audio profiles based on vehicle type and usage patterns.

Your Next Back-Up Should Feel Instinctive—Not Intimidating

Safety shouldn’t be complicated. Confidence shouldn’t be compromised. With the 4-Sensor Reversing Radar with Camera Compatibility, you’re not just adding another gadget—you’re upgrading your vehicle’s situational awareness architecture. It’s the quiet assurance behind every smooth reversal, the split-second warning that prevents a scratch—or worse—and the smart foundation that future-proofs your investment in vision-based driver assistance. Whether you drive daily, manage a fleet, or explore off-grid, this system meets you where you are—and helps you back up, exactly right. Ready to reverse with confidence? Your smarter rear view starts here.
